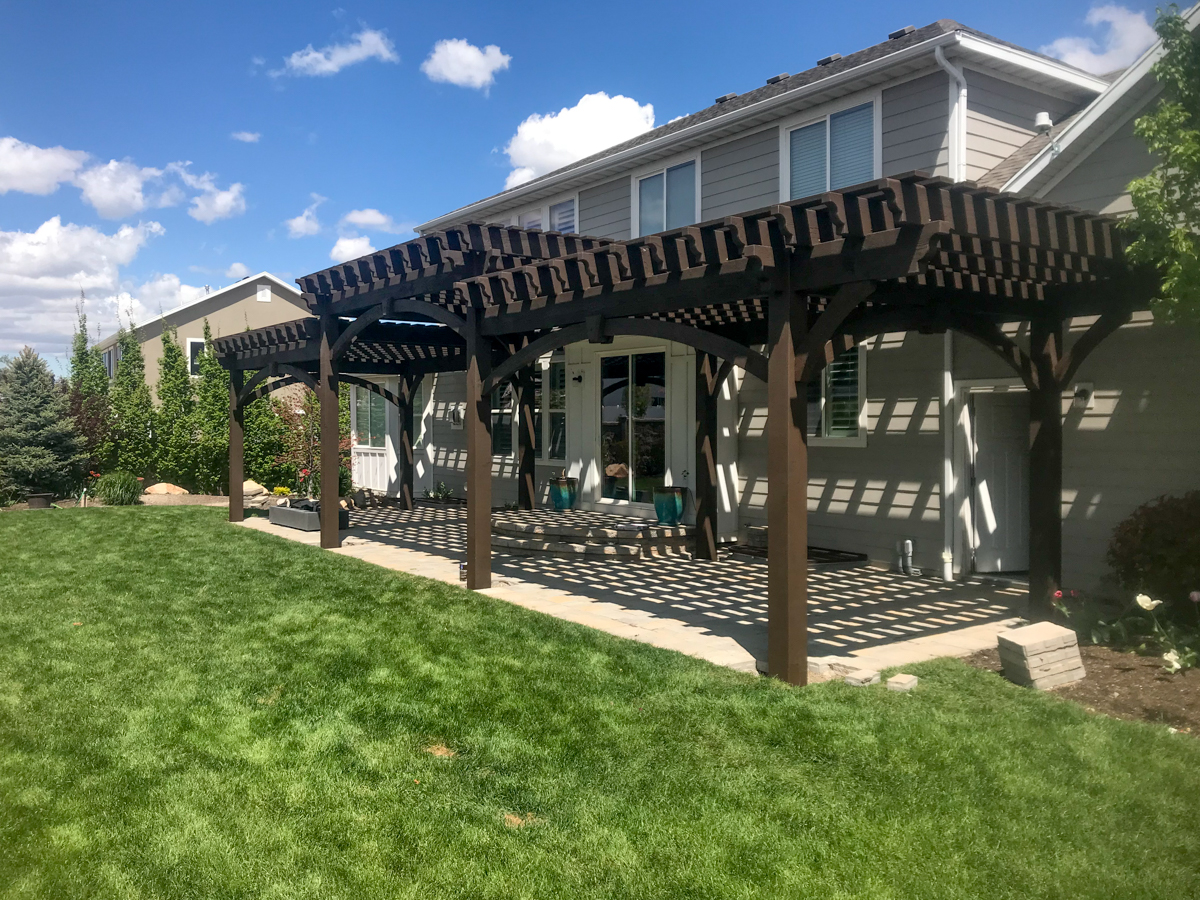

Wow! 51’5″ Step Tiered Cantilevered Roof Pergola

tiered pergola kit

Step tiered ShadeScape® Shelters, the combining of levels placed one above the other creates beautiful dimensions. The geometrical design puts on a delightful show of transitioning sunlights and shadows throughout the day.

Paying attention to every detail, Design Manager Mark Mackert added a four-foot cantilever on the left side to ensure continual shade throughout the day covering the end of the patio.

Step Tiered Cantilevered 8000 Series ShadeScape® Pergola DIY Kit

Structure Type: Pergola
Notes: 4′ Cantilever on left side
Project Type: Freestanding
Structure Style: Traditional
Wood Type: Douglas Fir
Timber Size: 8000 Series
Stain: Rich Cordoba
Beam Profile: Champion

Knee Brace Style: Classic
Knee Brace: Includes Arched Knee BracesArched w/ Keystone
Roof Size Dimensions: 15’6″ x 51’5″
Footprint Size Dimensions: 12’6″ x 48’5″
Posts Size: 8″
Height to the Bottom of Support Beam: 9′ and 11′
Hardware: 8 Knife Plates
Shipping and Job Schedule: 4-5 Weeks
